Make the side sheets

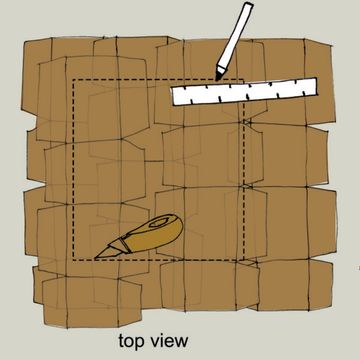

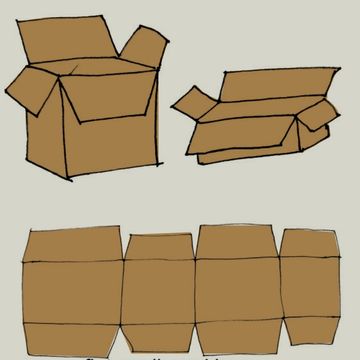

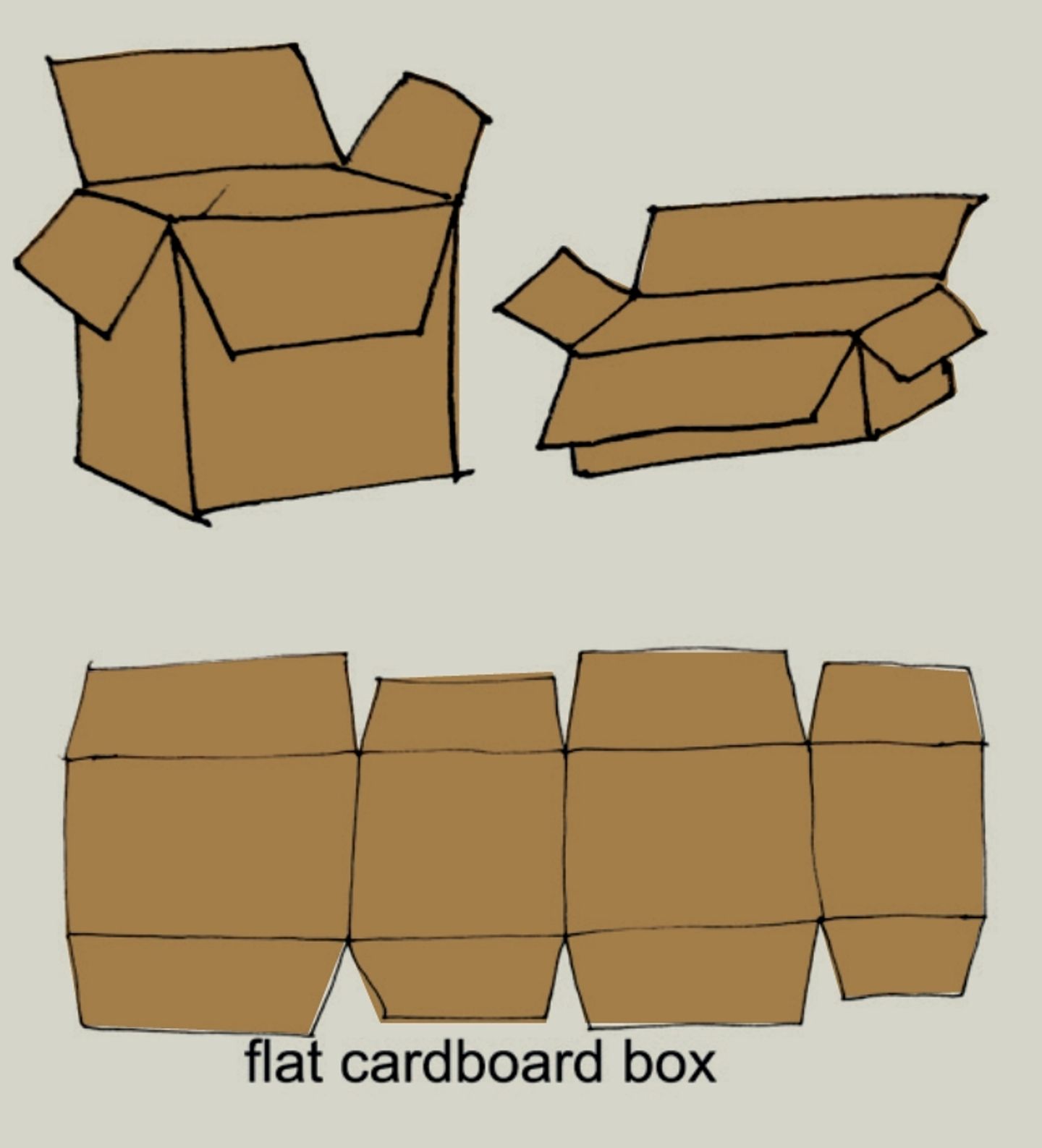

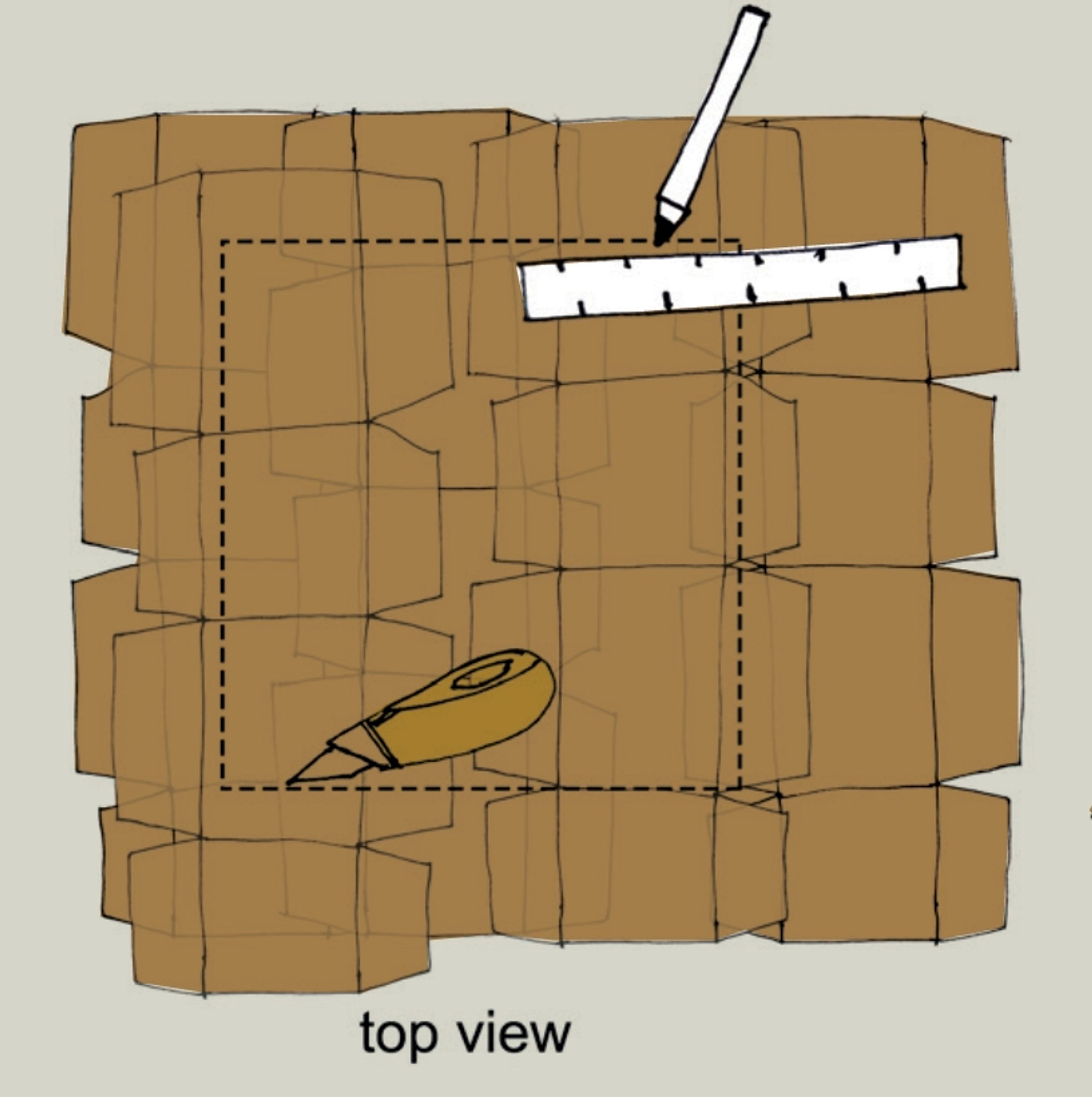

Each insulation panel needs two sheets of 1.2 metres by 1.2 metres, 2 cm thick. Flatten cardboard boxes and measure a sheet of 1.2 m by 1.2 m.

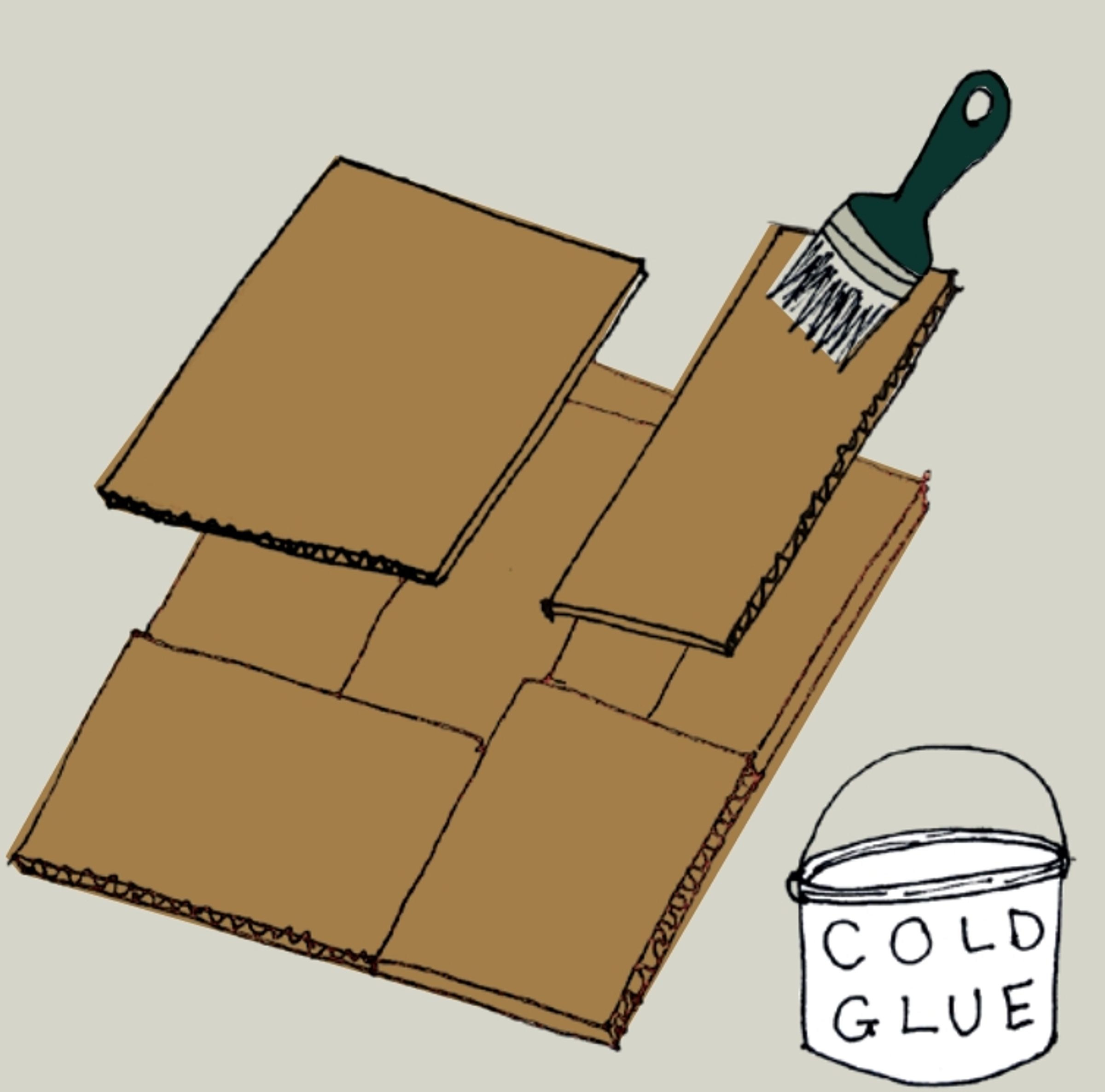

Layer the cardboard until you have a combined thickness of 2 cm for each sheet. Cut out. Glue together.

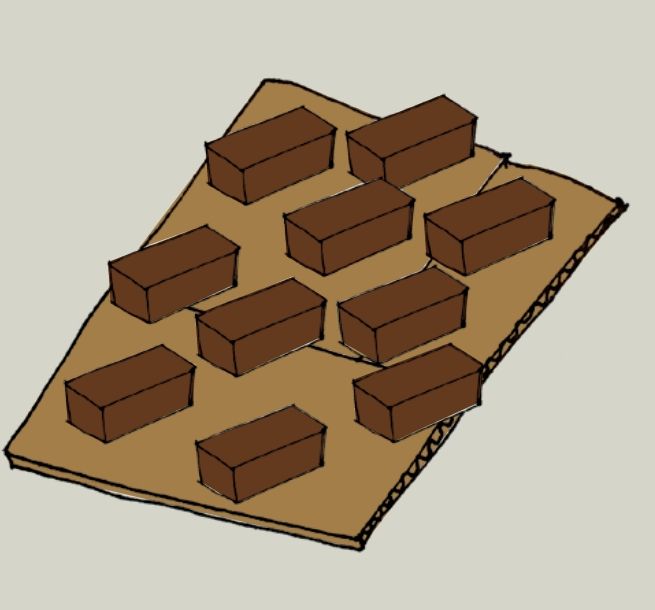

Place a brick or something heavy on top and leave to dry.

Fill the panel

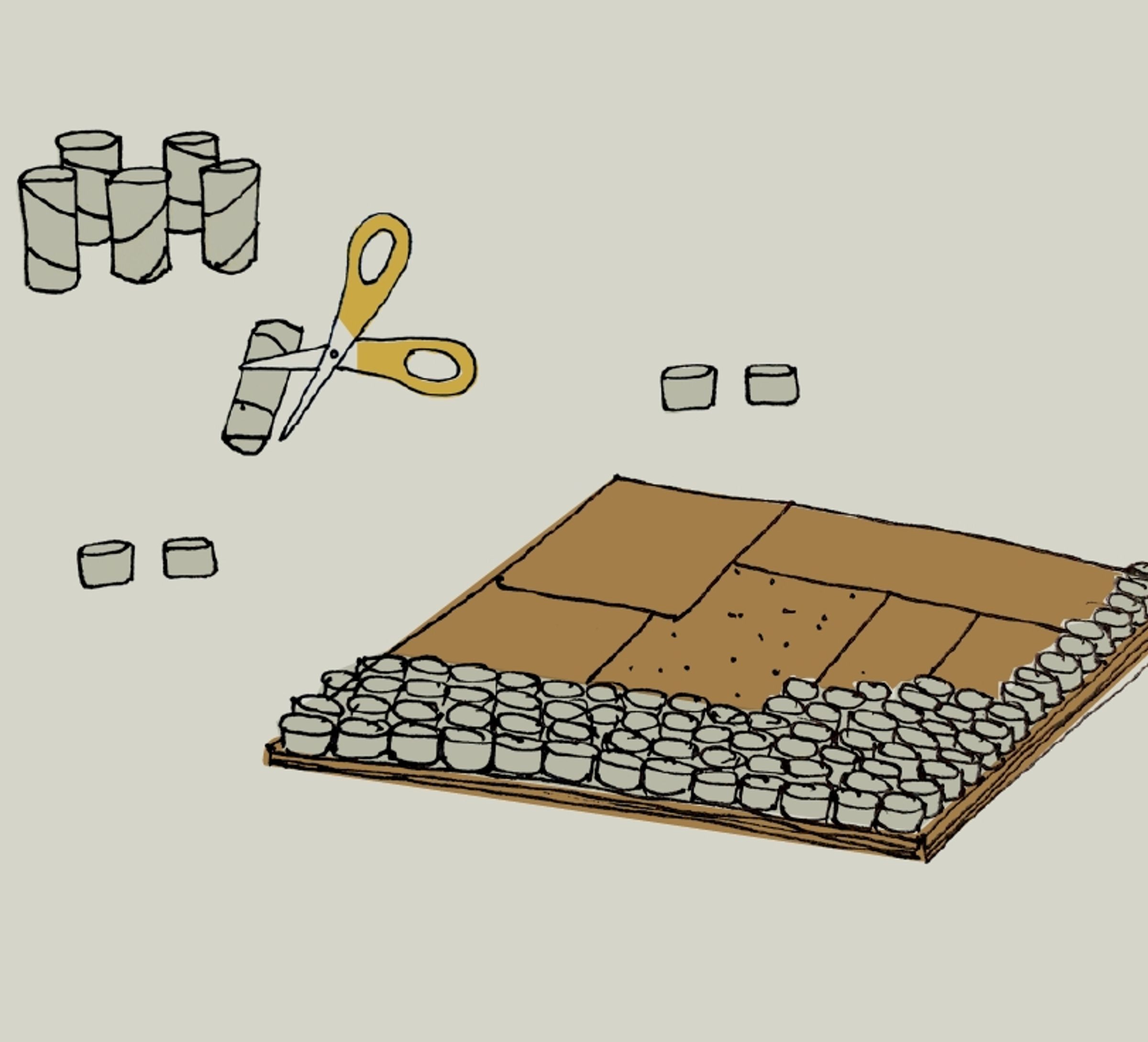

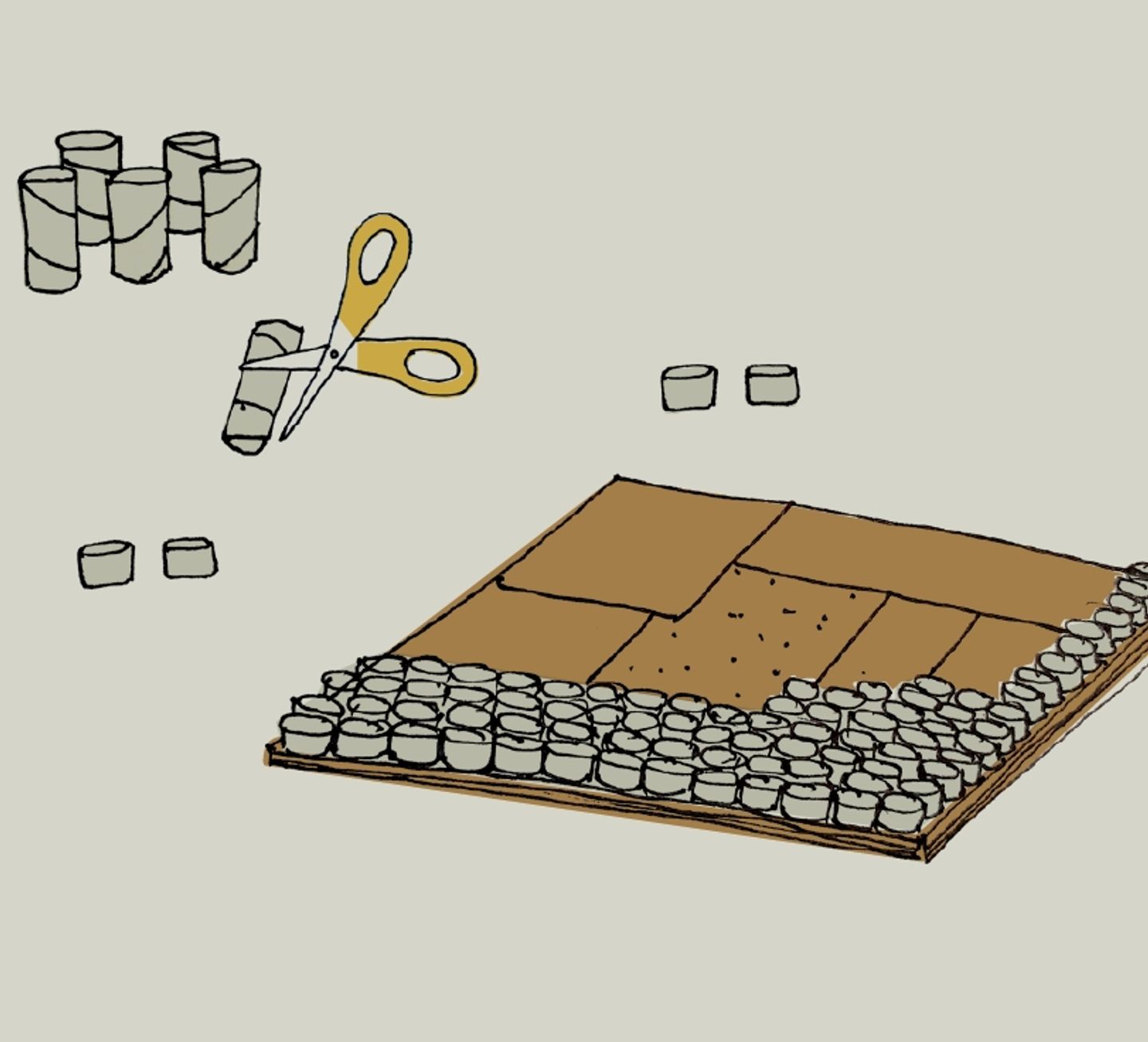

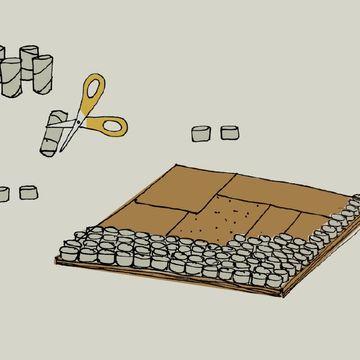

Option 1: Toilet paper rolls Cut the cardboard centre of a toilet paper roll in the middle. Apply glue to the sheet and stick down. Rolls must be close to each other.

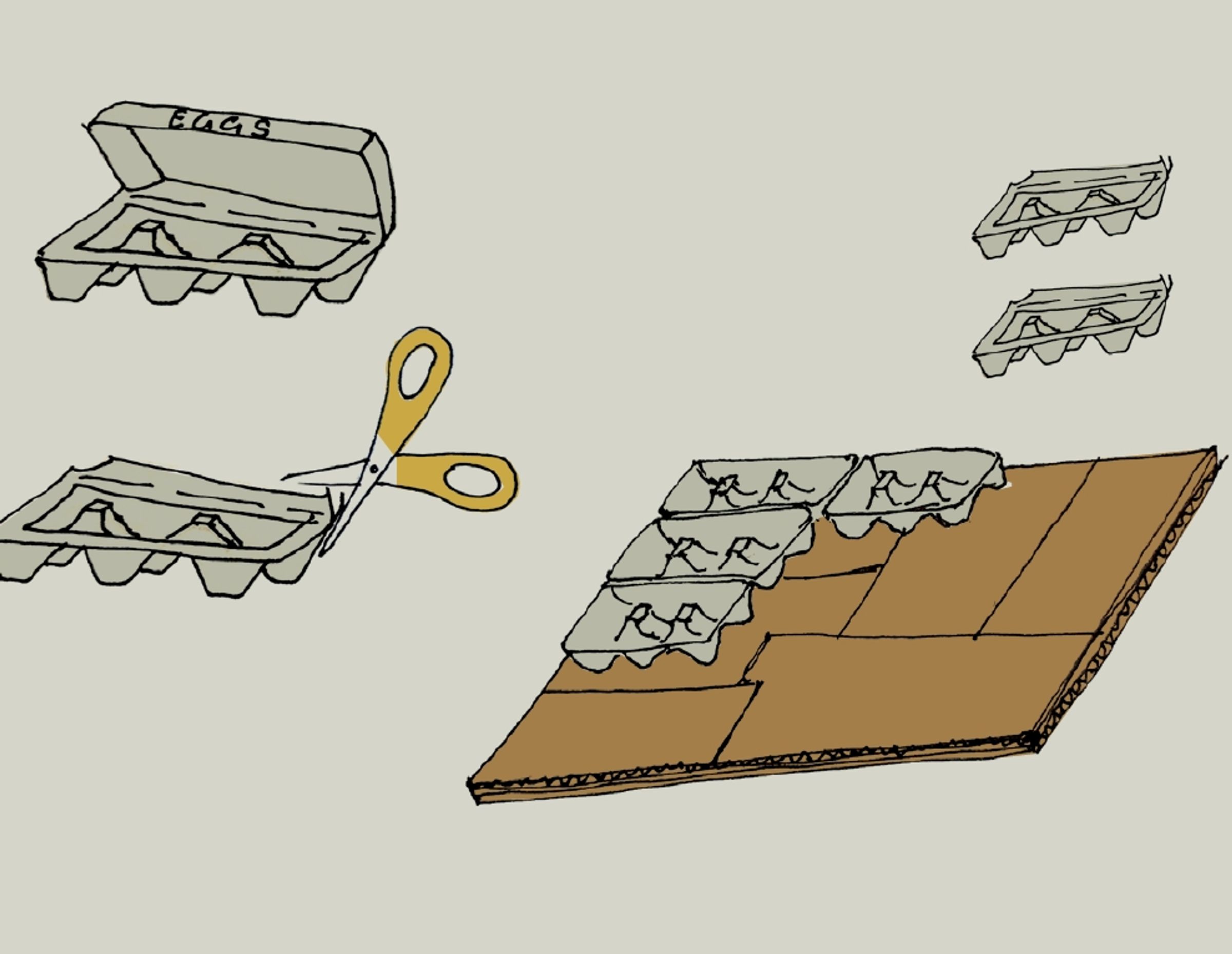

Option 2: Egg cartons Cut the top section off the egg carton. Apply glue to the sheet and stick down next to each other.

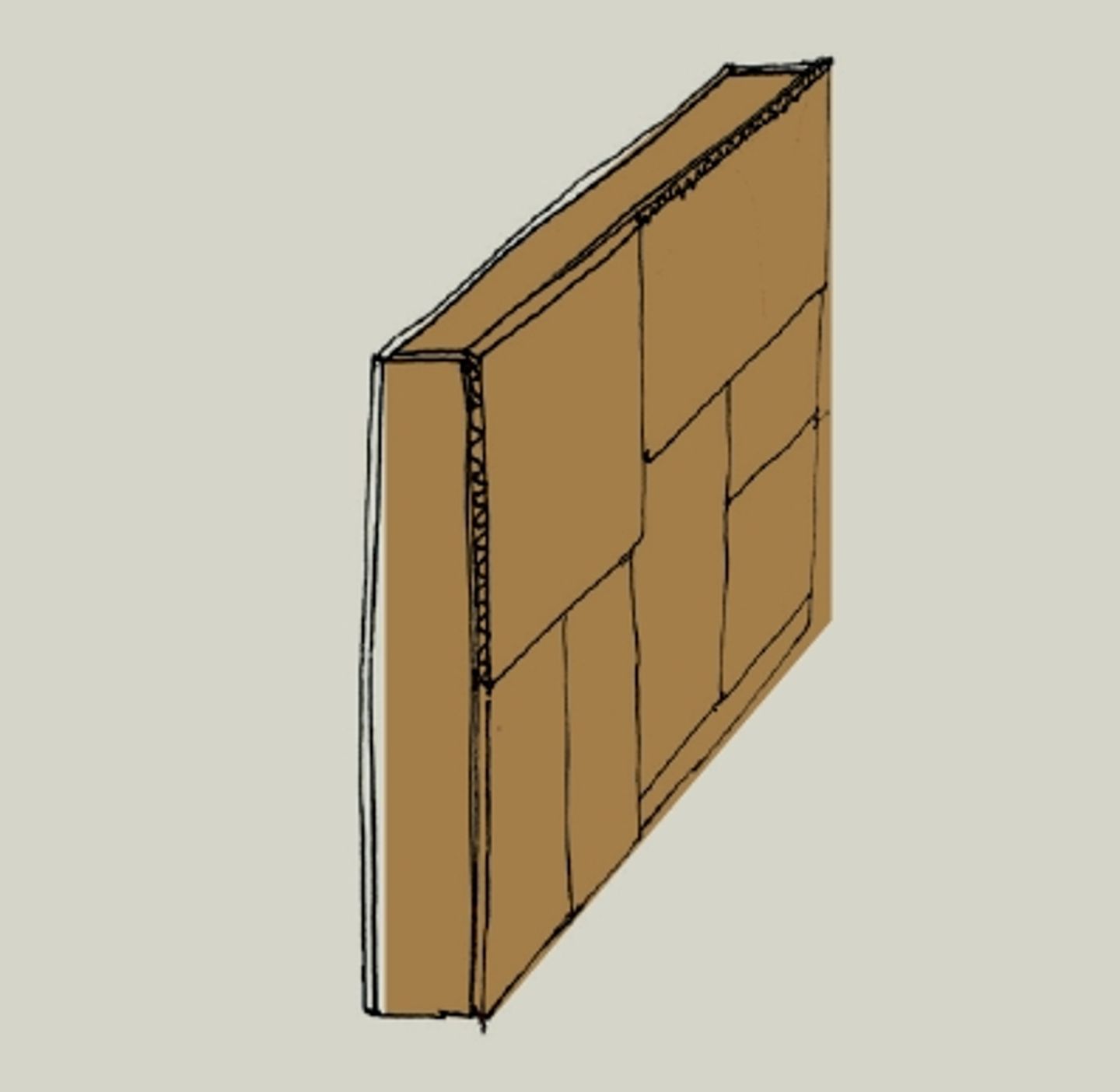

Close the panel

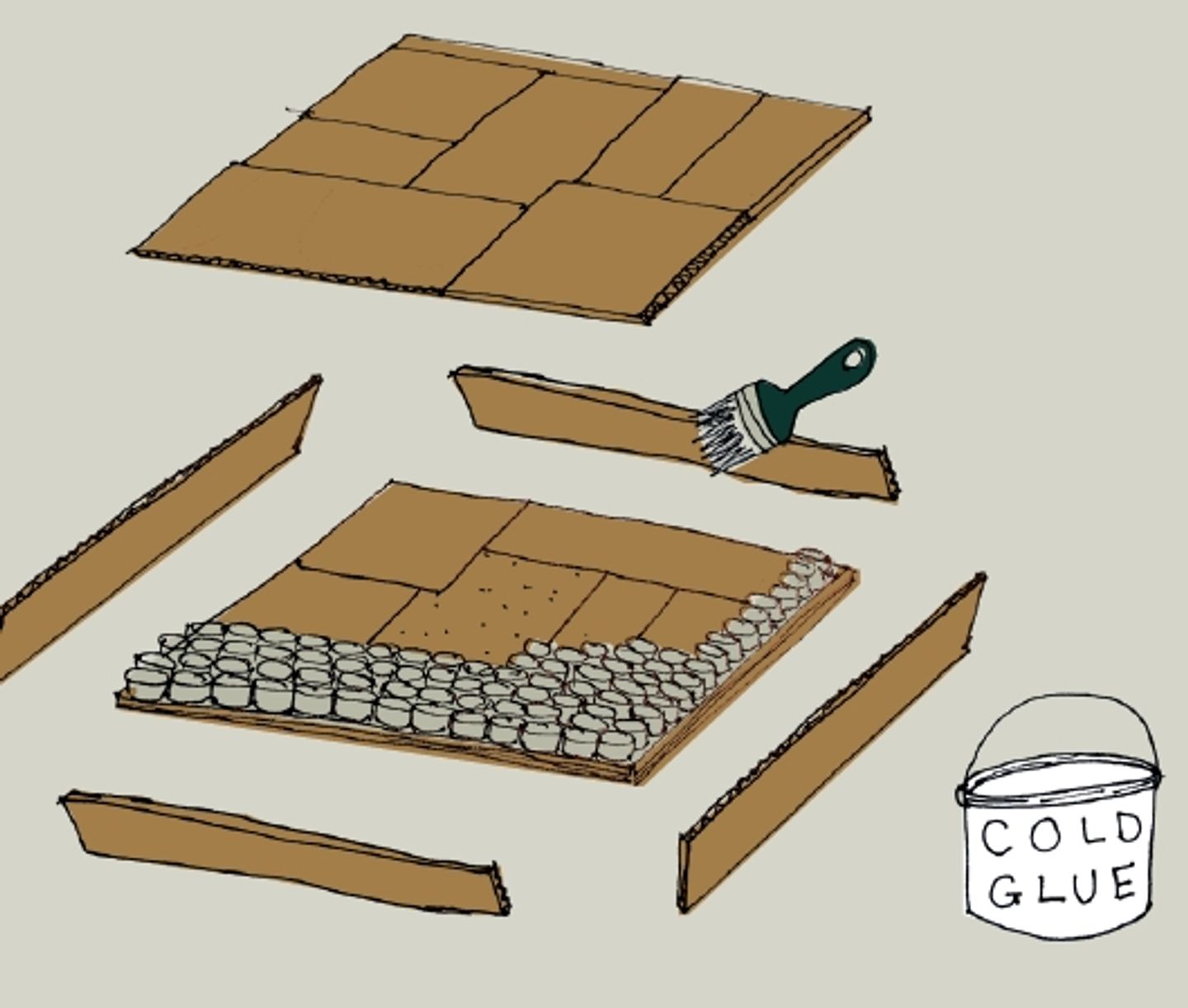

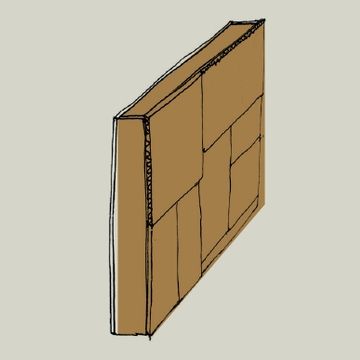

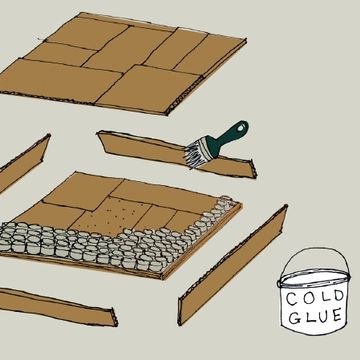

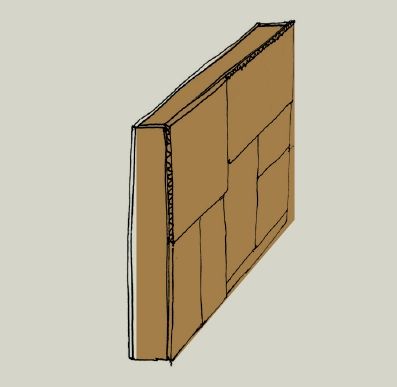

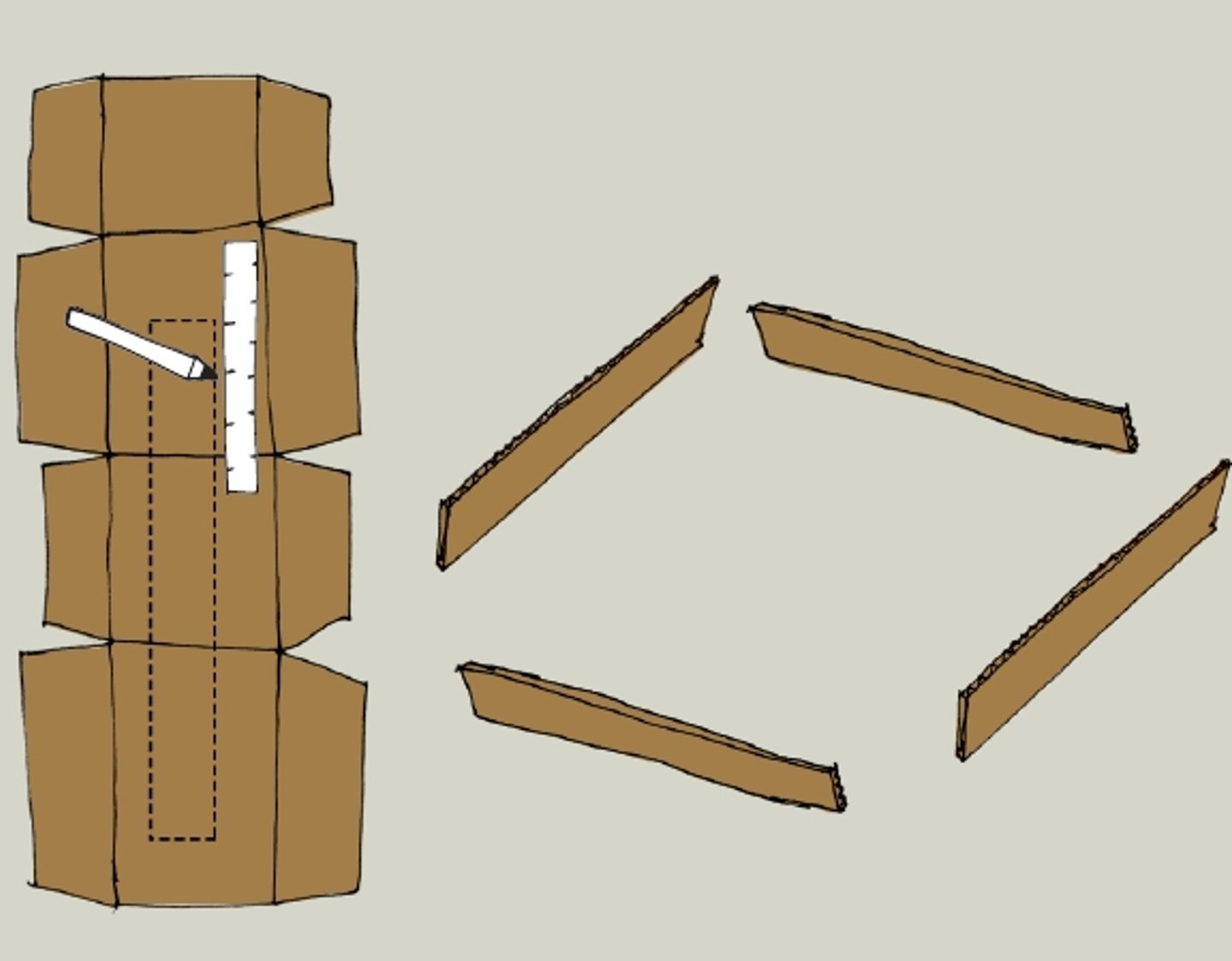

Cut 4 strips of cardboard which fit the thickness and the length of the panel and glue them onto the sides.

Installation

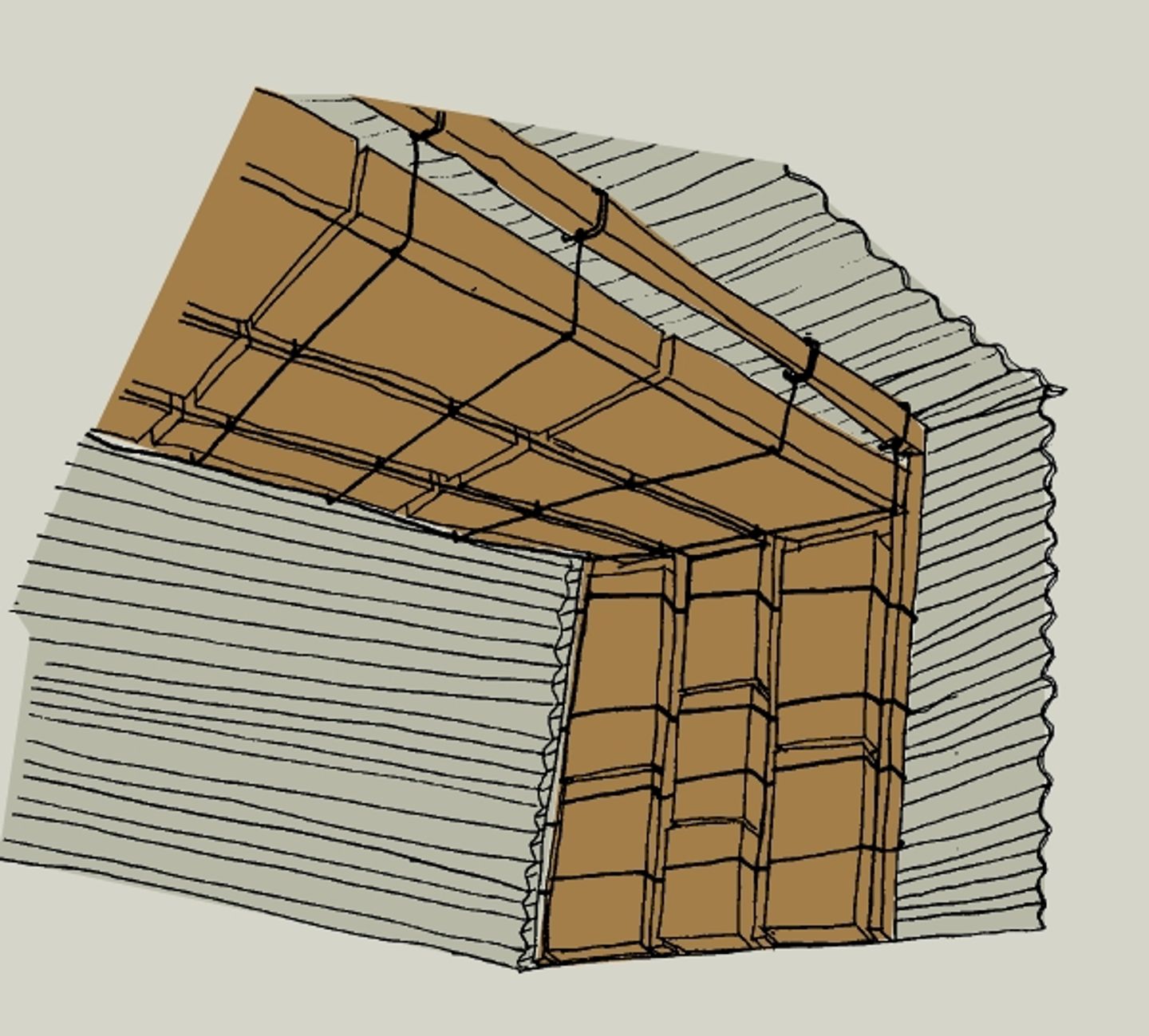

Install the finished panels inside the shack. Use wires or string to attach them to the roof and west and south facing walls.

Credits

This instruction is result of the Living Permaculture Project. NIFTI - Namibia Innovation for the Informal. Supported by GIZ.
